E-space

Airbnb for electric vehicle chargers connecting drivers with the charger operator companies.

We designed and developed IOS & Android apps consumers use to charge their cars and business dashboard companies use to manage their chargers, pricing, transactions and get analytics.

This case is focused on Mobile App. You can view business panel case separately: link

We are responsible for
User Research, UX Design, UI Design, User Testing, Mobile App development, Web App Development, Hardware Middleware Development, Devops

fdfdf-986x1024

Challenge

In Georgia, the number of electric vehicles is growing slowly. Transition to an environment-friendly transportation is limited by the lack of proper charger infrastructure for electric vehicles.

Solution

We designed and developed a system that lets different companies bringing EV chargers to Georgia connect to the Espace network and let car owners access all the chargers via mobile application.

Locate a Charger

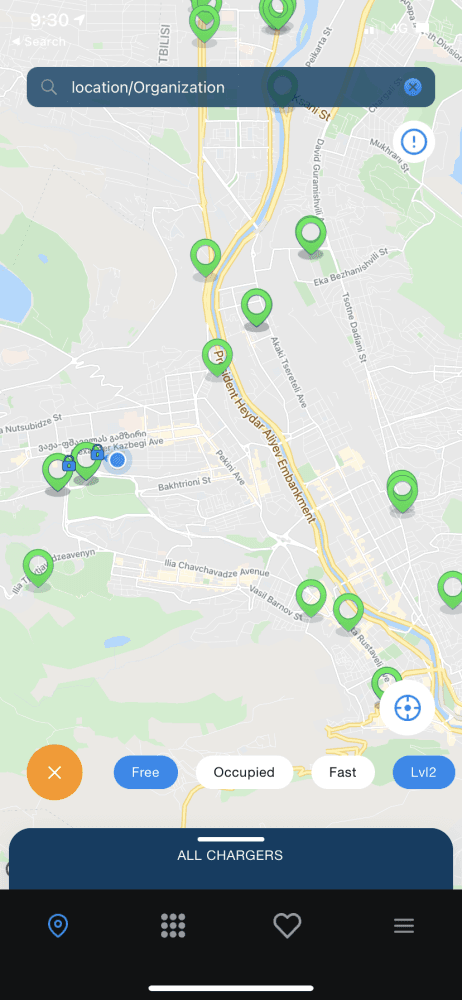

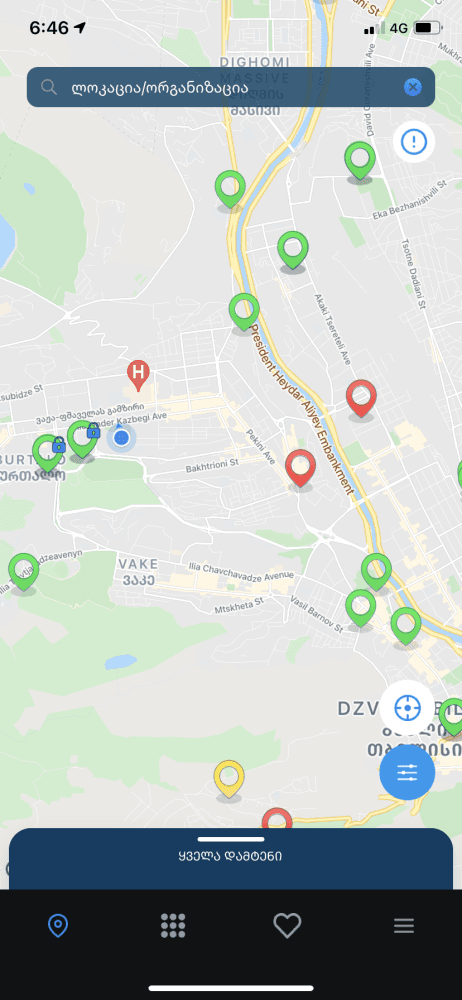

User can easily locate chargers on map. Distinguishing between commercial/non-commercial and Lvl 2/Fast chargers is made easy by a special icon set.

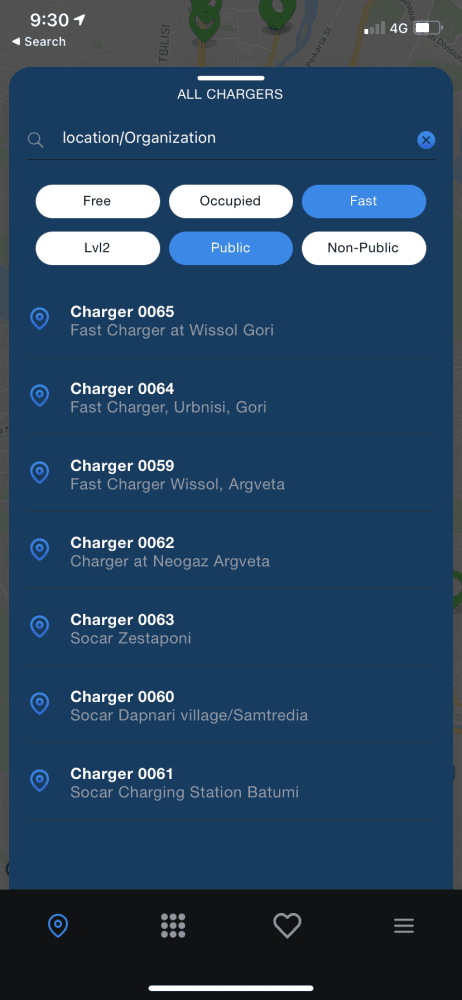

Additionally, live charger data is provided to identify which chargers are currently busy, available or out of order. User can also easily filter down the chargers and plan their routes to the charger.

Initiate Charging

User initiates a charging session from a charger’s screen, which user accesses by tapping a pin on the map, scanning the charger QR code, going through favorites or chargers list.

Prior to initiation of a charging session user sees the pricing and selects a connector suitable for her car. User can charge two cars simultaneously.

Locate a Charger

User can easily locate chargers on map. Distinguishing between commercial/non-commercial and Lvl 2/Fast chargers is made easy by a special icon set.

Additionally, live charger data is provided to identify which chargers are currently busy, available or out of order. User can also easily filter down the chargers and plan their routes to the charger.

Charging Process & Billing

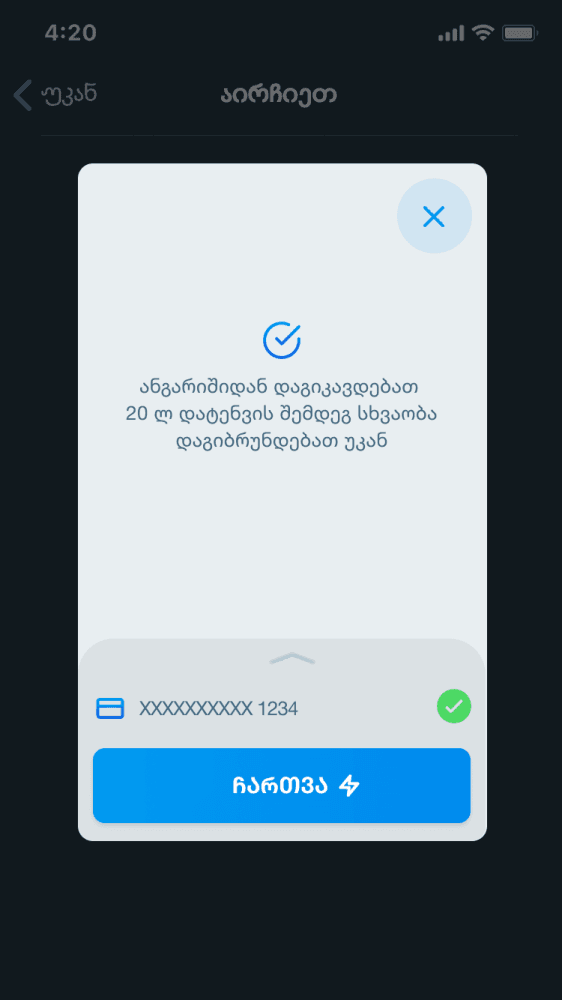

User can either predefine an amount, charge her car until the battery is full or until she manually ends the charging session. User selects a payment method and the app communicates with the charger hardware to initiate the charging process.

During charging user sees live data of charging and billing status. She can end the session right from the app. User also gets a notification when the battery is full.

When the charging ends, the payment transaction is made and the user sees the summary of the session.

Other Features

User accesses other features from the burger menu. She can view transactions list and see the details of each charging session. User can also see the pricing, faq, personal settings and contact customer support with Intercom chat.

0 %

Of electric vehicle owners in Georgia use Espace

0 %

Of EV chargers in Georgia are connected to the Espace

Involvement & Process

We conducted 1-on-1 and group interview sessions with electric vehicle owners to identify and get deep understanding of the problems they faced when they needed to charge their cars.

We created user personas and consumer journey maps.

Together with the client we held ideation workshops to come up with the solutions of specific pain points

We started with the sketching workshops which was followed by creating user flow diagrams. After that, we moved to wireframing and created a prototype in Figma. We tested the prototype with users, got feedback and iterated over UX design.

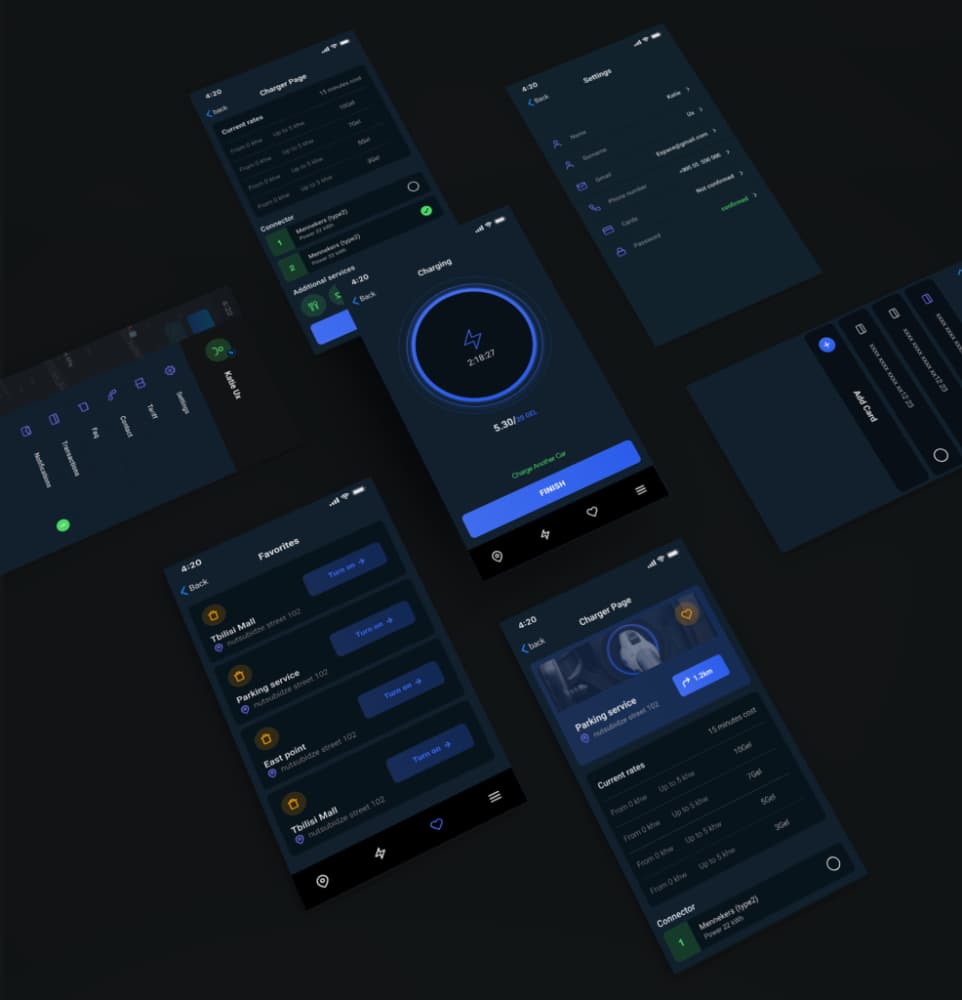

After that we moved forward to create the design system for the app interface. Our team designed the UI and built a UI prototype in Figma. We tested it with users, got feedback on design and copy, did iterations.

Our team used React Native to build cross-platform mobile application. Process was based on SCRUM framework with 2 week long sprints. At the end of each sprint, code was reviewed by our lead developer. Development process was test-driven. We used Detox for e2e testing and Jest for frontend unit tests. The code quality was maintained with the help of ESLint and its integrations. Codebase was managed on Github and on each commit or pull request the code was tested automatically. On failure, our team was notified on Slack.

We used Laravel to build the application backend and APIs. Development process was test-driven and based on SCRUM with 2 week-long sprints. We used PHPUnit library for automated tests and had weekly code reviews to sustain and enhance code quality. Laravel logger was integrated with Slack to alert the team about any errors. We used Firebase to send events and notifications to mobile application.

We created a middleware to integrate our system with low level charger hardware APIs. Our middleware translates data provided by the chargers to higher level process logic like start and end of the charging process, live information about the charging session including energy consumption, live information about chargers including active, busy, out of order, etc. The middleware was implemented using Laravel and is managed using the Nova admin panel.

Our team set up CI/CD pipelines with Github Actions. We had separate environments for development, staging and production. Infrastructure is in cloud and is based on AWS.

Tech Stack

  • Frontend
  • Backend
  • Devops
  • Integrations

TypeScript
ESLint
React Native
Redux
JWT Auth
Redux Saga
i18next
Jest

Laravel
Nova
Mix
Livewire
Spatie

Github Actions
AWS
Laravel Forge

Swagger
Figma
SMS Gateway
Firebase
Payments
Sentry
Github
Jira

June 3, 2019

E-space

Airbnb for electric vehicle chargers connecting drivers with the charger operator companies. We designed and developed IOS & Android apps consumers use to charge their cars and business dashboard companies use to manage their chargers, pricing, transactions and get analytics.

  • Our Engagement Involved:

    User Research, UX Design, UI Design, User Testing, Mobile App development, Web Dashboard Development, Charger Hardware Middleware Development, Backend Development, Devops.

  • Tech Stack & Tools:

    Laravel, Laravel Nova, React Native, Redux, Typescript, JWT Auth, Detox, Jest, Github Actions, Firebase, Georgian Card Payment Processing, Sentry, Github, Swagger, AWS, JIRA, FIGMA.
